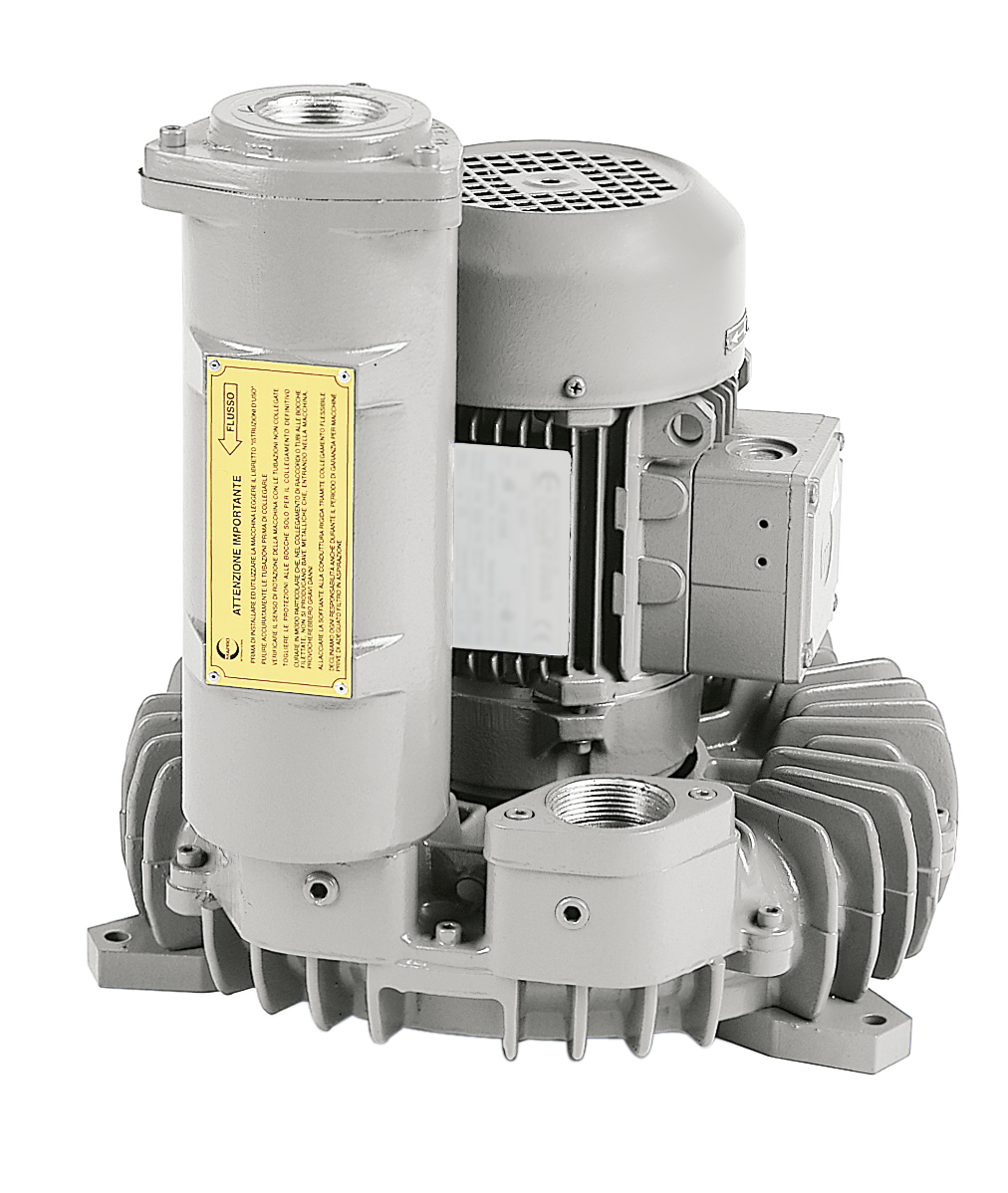

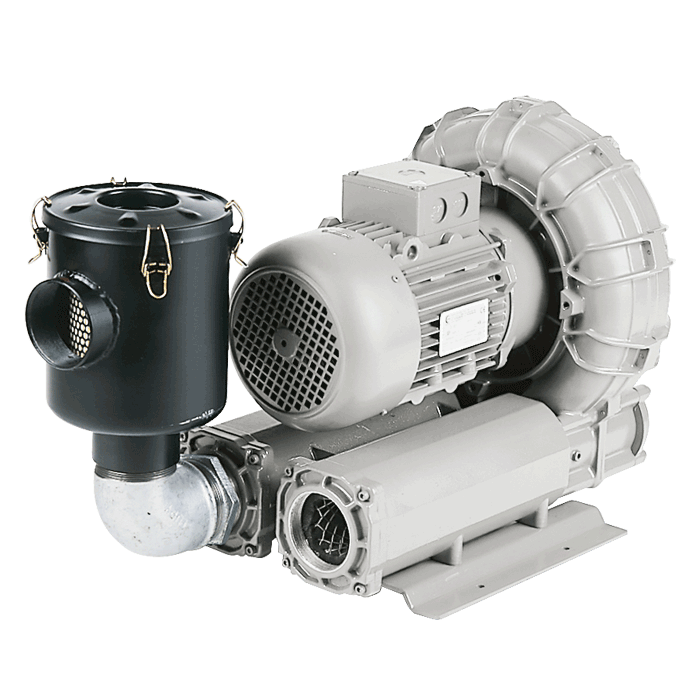

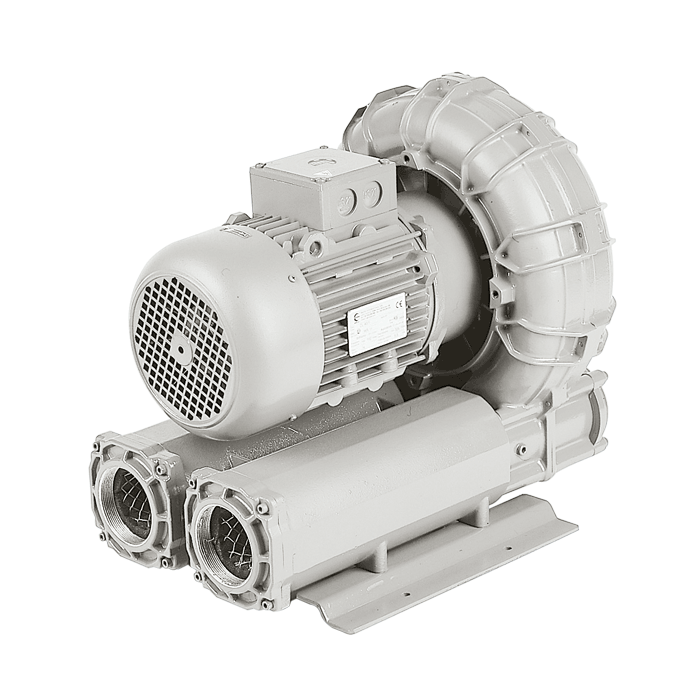

Side Channel Blower
FPZ range of Side Channel Blower Pumps are developed, controlled and manufactured to the highest quality.
This range of Side Channel Blower Pumps aims to rival other EU manufacturers and in many instances, they are inter-changeable with other manufacturers models.
Overview
Dry, non-contacting Side Channel Blower Pumps can be used for vacuum or low-pressure industrial applications. Alternatively, they can be used for a combination of pressure and vacuum process. These Pumps are very quiet, robust and deliver almost smooth pulsation-free air flow.
Features
• Quiet, robust and reliable.
• IEC motors with class F insulation, IP55.
• CE, UL and CSA certification.
• Special seals and coating options.
• Bearing positioned at ends of shaft, reducing cantilever loads and better heat dispersion.
• Customer specific constructions.
• Virtually maintenance free, with sealed long life bearings.
• Environmentally friendly due to dry and oil free compression.
Side Channel Blower Performance Data
Model | Maximum Speed | Max Airflow | Max Pressure | Data Sheet |
MS | 4500 | 1022 | 450 | |
TS | 4500 | 1985 | 350 | |
MD | 4500 | 472 | 650 | |
TD | 4000 | 1007 | 600 |
Parts List and installation guides available on request - Please call +44 (0) 1594 546440
